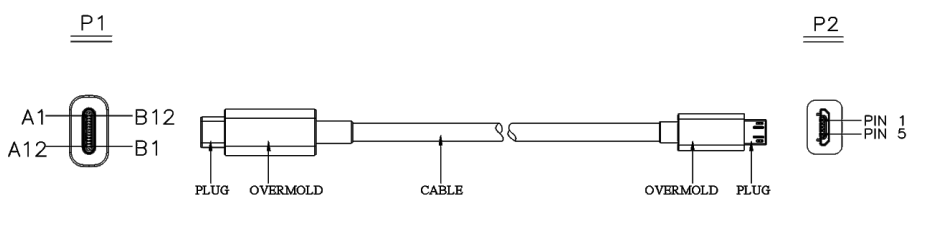

USB TYPE-C和USB2.0 Micro-B插头线缆接线图

Pin A5 (CC) of the USB Type-C plug shall be connected to GND through a resistor Rd (5.1 kΩ ± 20%).
See Section 4.5.3.2.1 and Table 4-25 for the functional description and value of Rd.Contacts B6 and B7 should not be present in the USB Type-C plug.All VBUS pins shall be connected together within the USB Type-C plug. Bypass capacitors are not
required for the VBUS pins in this cable.All Ground return pins shall be connected together within the USB Type-C plug.Pin 4 (ID) of the USB 2.0 Micro-B plug shall be terminated as defined in the applicable specification
for the cable type.Shield and GND grounds shall be connected within the USB Type -C and USB 2.0 Micro-B plugs on
both ends of the cable assembly.All USB Type-C plug pins that are not listed in this table shall be open (not connected)
