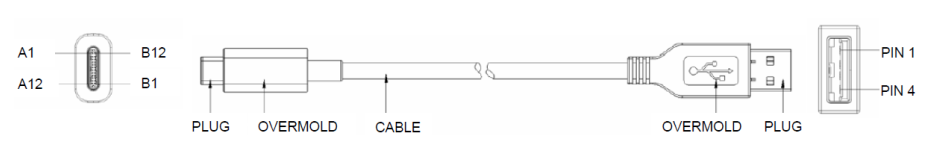

USB TYPE-C和USB2.0 TYPE-A插头线缆接线图

Pin A5 (CC) of the USB Type-C plug shall be connected to VBUS through a resistor Rp (56 kΩ ± 5%).
See Section 4.5.3.2.2 and Table 4-24 for the functional description and value of Rp.Contacts B6 and B7 should not be present in the USB Type-C plug.All VBUS pins shall be connected together within the USB Type-C plug. Bypass capacitors are not
required for the VBUS pins in this cable.All Ground return pins shall be connected together within the USB Type -C plug.Shield and GND grounds shall be connected within the USB Type -C and USB 2.0 Standard-A plugs on
both ends of the cable assembly.All USB Type-C plug pins that are not listed in this table shall be open (not connected)
